Curd/Lassi/Buttermilk Processing Plant

Curd/Lassi/Buttermilk Processing Plant

We are offering Curd/Lassi/Buttermilk Processing Plants that are widely installed in dairy plants and food industries. Our Processing Plants are constructed using stainless steel and are tested thoroughly on stringent parameters.

---

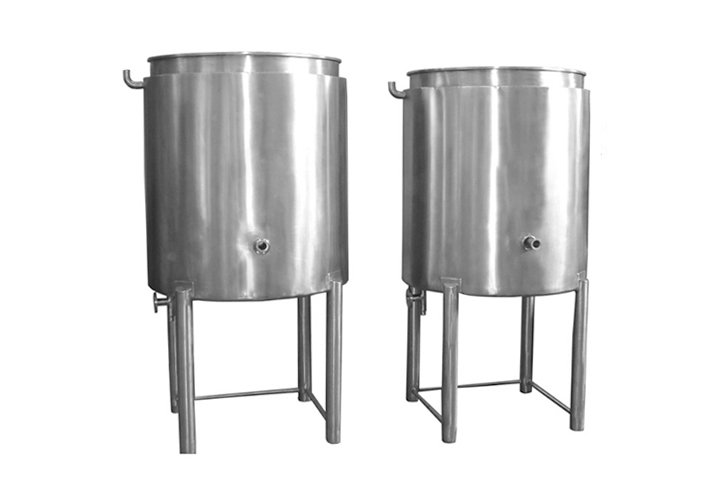

• Settling Tank

Lassi & Butter Milk would be stored in this tank at temperature of 60° to 65° centigrade or Ghee made in the ghee boiler, would be transferred in this tank for settling of burnt SNF residues. The tank should be of double walled, jacketed and sanitary design. All inside corners should have minimum radial of 25 mm. The shell and the bottom portion of the tank should be jacketed for heating and cooling arrangement.

The inner shell and inner conical bottom should be made from 2 mm thick for 1 KL, 2 KL and 3mm for 5 KL and 10 KL stainless steel plate conforming to AISI 304. The outer shell and flat bottom should be made from of 2 mm thick stainless-steel plate conforming to AISI 304. The top should be flat made from 2mm thick stainless-steel sheet conforming to AISI 304. Two Half openable covers on top made from 2 mm thick stainless-steel sheet conforming to AISI 304.

Sprinkler pipe of 25 mm dia made from stainless steel (AISI 304) for sprinkling hot or chilled water on the outer surface of inner shell. The complete sprinkler pipe should be removable. The sprinkler pipe should end outside in a header with two separate connections for hot and chilled water. All stainless-steel welding joints are to be ground smoothly. All stainless-steel surfaces are to be polished to 150 grits. All standard accessories are to be provided to the tank.

---

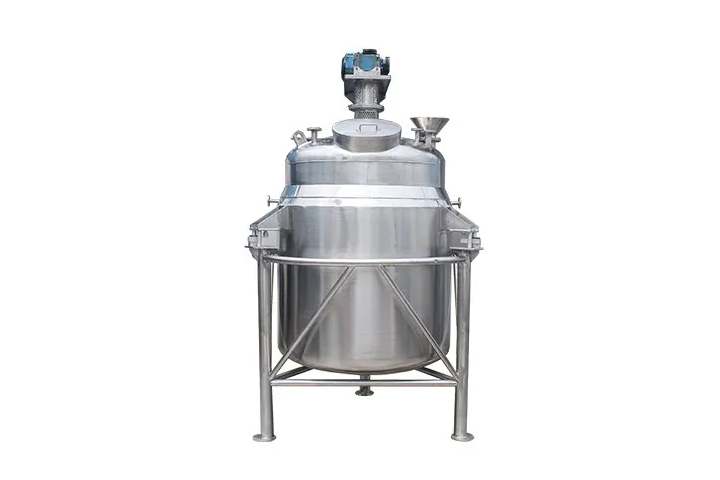

• Sugar Syrup Vat

These vats are manufactured utilizing latest technology and top-grade material in synchronization with the dairy standards. These products are available with us in variegated dimensions in accordance with specific needs. Multipurpose Vat is packed in safe and special packaging material and securely delivered end in a set time-frame.

Features:

• MOC: SS 304 /SS 316
• Capacities: As per customer requirements
• Exceptional finish
• Durable in nature
• Easy maintenance
• Simple to install

---

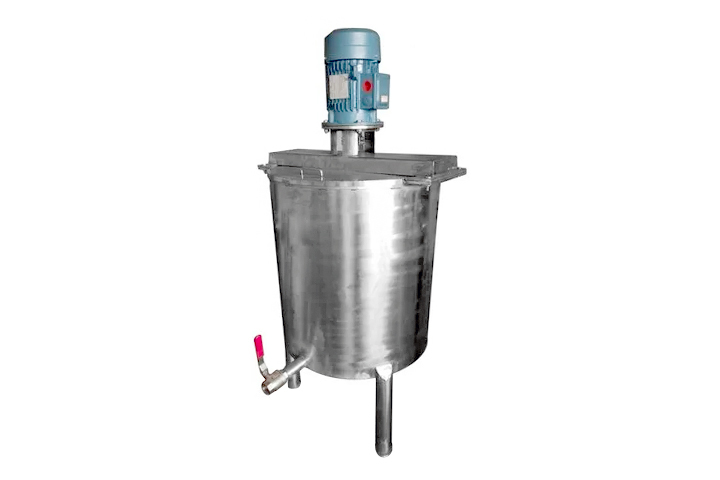

• Flavour Mixing & Storage Tank

Blending is the process of mixing together a number of liquids to achieve a finished product of closely defined quality and quantity. A good blending system should achieve this without the need for blend adjustments (wastage), with sufficient automation to limit the potential for errors and should keep the labour and production costs to a minimum. These agitators are fixed at the top part of tanks, and their shafts are inserted vertically for use. Two features of these agitators is a long service and little vibration. It can be use in many industries like Liquor, Pharmaceuticals, Milk, Perfume, Juice, Chemicals, etc..

Features:

• Application: Storage & Mixing of any type of liquid
• MOC: SS 304 / SS 316
• Type: Cylindrical, Vertical, Horizontal
• Capacity & Connections: As per Customer Requirement
• Mixing Agitator: Suitable to the rated capacity of the Tank
• Note: Customize models are available on request
