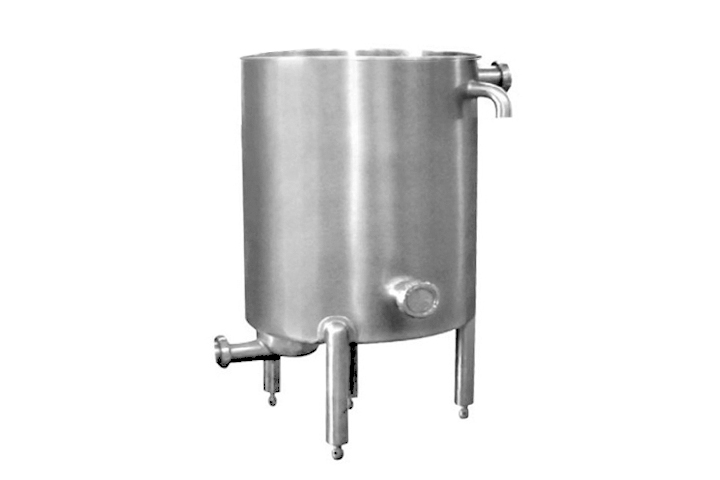

Balance Tank

Balance Tank

The volume of the tank should be such that after filling it up to the rated capacity, the level would be 100 mm below the line where cylindrical shell joins the conical top. Triple walled, insulated and welded construction of sanitary design. Sufficient slope should be provided towards the inlet-cum-outlet along the periphery of the reverse conical bottom. The only metal to metal contact between the inner and outer shells should be at the places where fittings for the tank are provided. All welding joints are to be ground smoothly. All stainless-steel surfaces are to be polished to 150 grits. The radii of all welded and permanent attachment joints should be at least 6mm. Where the conical top and reverse conical bottom join the cylindrical shell, the radii should not be less than 25mm.
